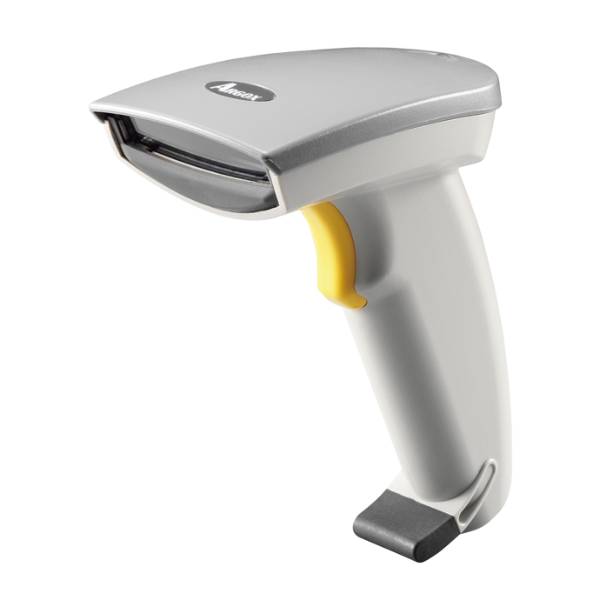

Strekkodeleser USB (Opptil 250mm leseravstand)


Strekkode leser med USB tilkobling.


Opptil 25 cm leseravstand.


Leseren kan konfigureres til og lese kontinuerlig eller ved knapp på leser. Samt mange andre konfigurasjonsmuligheter.


The long range scanner is suitable for a wide range of applications, from retail checkout and inventory management, to invoicing in offices and shipping/receiving control in factories. This long range model delivers fast and accurate reading of PDF codes, Code 16K as well as all standard linear symbologies. The scanner provides users with many benefits, including a 200mm scanning range, small size, and cost effectiveness. The scanner offers an all-in-one universal host interface, and a Windows utility is included.


Gerneral Purpose reader - a signle device

covering the broadest range of application


Durable - without any moving parts to wear out


Plug and play connectivity - All popular interfaces

are on board KBW /USB/RS-232


200 scans per second and working range from

contact to 250mm on medium density barcodes


Support PDF417 decoding


Aiming line- Aiming line for easy-of-use in

scanning barcode


Excellent Scanning Performance starting at

0.1mm (4 mil)


Readable Under Sun Light


Reliability

(1) Trigger: 1,000,000 times

(2) Cable: 320,000 times (90°)

(3) Drop: 1.5 meter



Light source

660 nm visible red LED

Optical system

2048 pixel CCD (charge-coupled device)

Depth of scan field

0-250 mm

Scanning width

120 mm

Scan speed

200 scans/sec

Current - sleep mode

25 mA @ 5VDC

Resolution

0.1mm (4mils) - Code 39,PCS=45 %, on contact

Print contrast

30% or more

Scanning angle

Front: 60° ,Rear: 60° ,Yaw: 75°

Decode capability

Autodiscriminates all standard barcodes; other symbologies can be ordered optionally (2D Symbology for AS-8250)

Cable - universal type

Straight 2.3 m

Beeper operation

7 tones or no beep

Indicator

Green LED

Length

182 mm

Cushion material

Rubber

Width-handle

26 mm

Width-head

74 mm

Depth-handle

51 mm

Depth-head

35 mm

Weight

150 g (cable not included)

Cable - K/B wedge

Straight 2.0 m

Connector type

RJ-45 phone jack connector

Case material

ABS plastic

Shock resistance

0°C to 40°C (32°F to 104°F)

Input voltage

5 VDC ± 0.25V

Power - operating

900 mW

Power - standby

500 mW

Current - operating

180 mA @ 5 VDC

Current - standby

100 mA @ 5 VDC

DC transformers

Class 2; 5VDC @ 450 mA

Storage

-40°C to 60°C (-40°F to 140°F)

Humidity

5% to 90% relative humidity, non-condensing

Light level

Up to 80000 Lux

Shock

1.5m drop onto concrete

Programming method

Manual (reading special barcode) DOS command through RS-232, Windows configuration program

Contaminants

Sealed to resist airborne particulate contaminants

Program upgrade

Enabled by build-in flash memory

Programmable characteristics

Code type selection, check digit selection Decoding option Transmitted character delay, Header selection, trailer selection, message suffix, good read beep tone and volume, scanner trigger selection Keyboard emulation type (intermessage delay, keyboard type and keyboard language).Serial interface type (ACK/NAK, Xon/Xoff, RTS/CTS, good read LED control, start/stop bits)

Agency Listing

CE, FCC, CCC, RoHS

Attention

*This data sheet is for informational purposes only. Argox makes no warranties, expressed or implied in this summary. Specifications are subject to change without notice. All trademarks are the property of their respective owners. More specific information, please refer to user’s manual.

Logg inn

Ugyldig e-post eller passord

Informasjon

Varenummer:
25203

Spesifikasjoner

Tilkopling
USB
